| Type | No. | Item | Code | Unit | Data | |||
|---|---|---|---|---|---|---|---|---|
| Identification | 1.01 | Manufacturer | LONKING | |||||
| 1.02 | Model | LG120DT | LG135DT | LG160DT(A) | LG160DT(B) | |||
| 1.03 | Power type | Diesel | ||||||
| 1.04 | Rated capacity | Q | kg | 12000 | 13500 | 16000 | 16000 | |
| 1.05 | Load center | J | mm | 600 | 600 | 900 | 1200 | |
| Dimensions | 2.01 | STD Max height (with backrest) | mm | 4668 | 4700 | 5425 | 5685 | |
| 2.02 | STD Max lifting height | h1 | mm | 3000 | 3000 | 3500 | 4000 | |
| 2.03 | Overhead guard height | h4 | mm | 2610 | 2974 | 3566 | 3262 | |
| 2.04 | Overall length (with fork) | L1 | mm | 5945 | 6712 | 7410 | 7870 | |
| 2.05 | Wheelbase | L2 | mm | 2950 | 3250 | 3800 | 3750 | |
| 2.06 | Front overhang | L3 | mm | 755 | 785 | 968 | 925 | |
| 2.07 | Rear overhang | L4 | mm | 720 | 857 | 840 | 795 | |
| 2.08 | Min.ground clearance (Frame/Mast) | m1/m2 | mm | 360/266 | 280/276 | 330/330 | 250/250 | |
| 2.09 | Overall width | W1 | mm | 2350 | 2740 | 2752 | 2560 | |
| 2.1 | Adjusting range of fork (outside) | mm | 470-2200 | 470-2380 | 580-2214 | 900-2340 | ||
| 2.11 | STD Fork size (L5*W*T) | mm | 1520×200×85 | 1820×200×85 | 1820×220×100 | 2400×250×100 | ||
| 2.12 | Front wheel tread | S | mm | 1724 | 2068 | 1895 | 1878 | |
| 2.13 | Rear wheel tread | P | mm | 1850 | 2120 | 2120 | 2120 | |
| 2.14 | Min.turning radius | R1 | mm | 4300 | 4500 | 5300 | 5175 | |
| 2.15 | Min aisle width for pallet 1000×1200,crossways | mm | 6775 | 7300 | 8288 | 8700 | ||
| 2.16 | Min aisle width for pallet 800×1200,lengthways | mm | 6775 | 7300 | 8288 | 8700 | ||
| Tires | 3.01 | Wheels number, front/rear (X=driven wheels) | X=4/2 | |||||
| 3.02 | Tires type | Pneumatic | ||||||
| 3.03 | Tires size, front | 10.00-20-16PR | 11.00-20-18PR | 12.00-24-20PR | 12.00-24-20PR | |||
| 3.04 | Tires size, rear | 10.00-20-16PR | 11.00-20-18PR | 12.00-24-20PR | 12.00-24-20PR | |||
| 4.01 | Max.traveling speed, loaded/unloaded | km/h | 25/27 | 25/27 | 22/27 | 26/29 | ||
| Other Details | ||||||||
| 4.02 | Max.lifting speed, loaded/unloaded | mm/s | 350/370 | 360/400 | 280/300 | 320/360 | ||
| 4.03 | Lowering speed, loaded/unloaded | mm/s | 350/310 | 410/320 | 410/320 | 360/310 | ||
| 4.04 | Max.traction, loaded | KN | 85 | 85 | 110 | 130 | ||
| 4.05 | Max.gradient, loaded/unloaded | % | 25/20 | 25 | 20 | 28/25 | ||
| 4.06 | STD operating weight (with oil & water) | kg | 15300 | 18000 | 23500 | 24000 | ||
| 4.07 | Axles loading,front/rear (loaded) | kg | 24900/2400 | 36500/3000 | 36500/3000 | 37200/2800 | ||
| 4.08 | Axles loading,front/rear (unloaded) | kg | 7200/8100 | 10500/13000 | 10500/13000 | 11700/12300 | ||
| 4.09 | Service brake | Gas push oil-pedal | Wet brake-pedal | |||||
| 4.1 | Parking brake | Mechanical-hand brake lever | Hydraulic release-push-button | |||||
| 4.11 | Drive type | Hydraulic gearbox | Electrical gearbox | Electrical gearbox | Automatic-DANA | |||
| 4.12 | Number of gear (front/rear) | 2/2 | 2/2 | 2/1 | 3/3 | |||
| 4.13 | Fuel tank capacity | L | 200 | 200 | 300 | 250 | ||
| 4.14 | Battery votage/capacity | V/Ah | 2×12/90 | 2×12/90 | 2×12/120 | 2×12/120 | ||

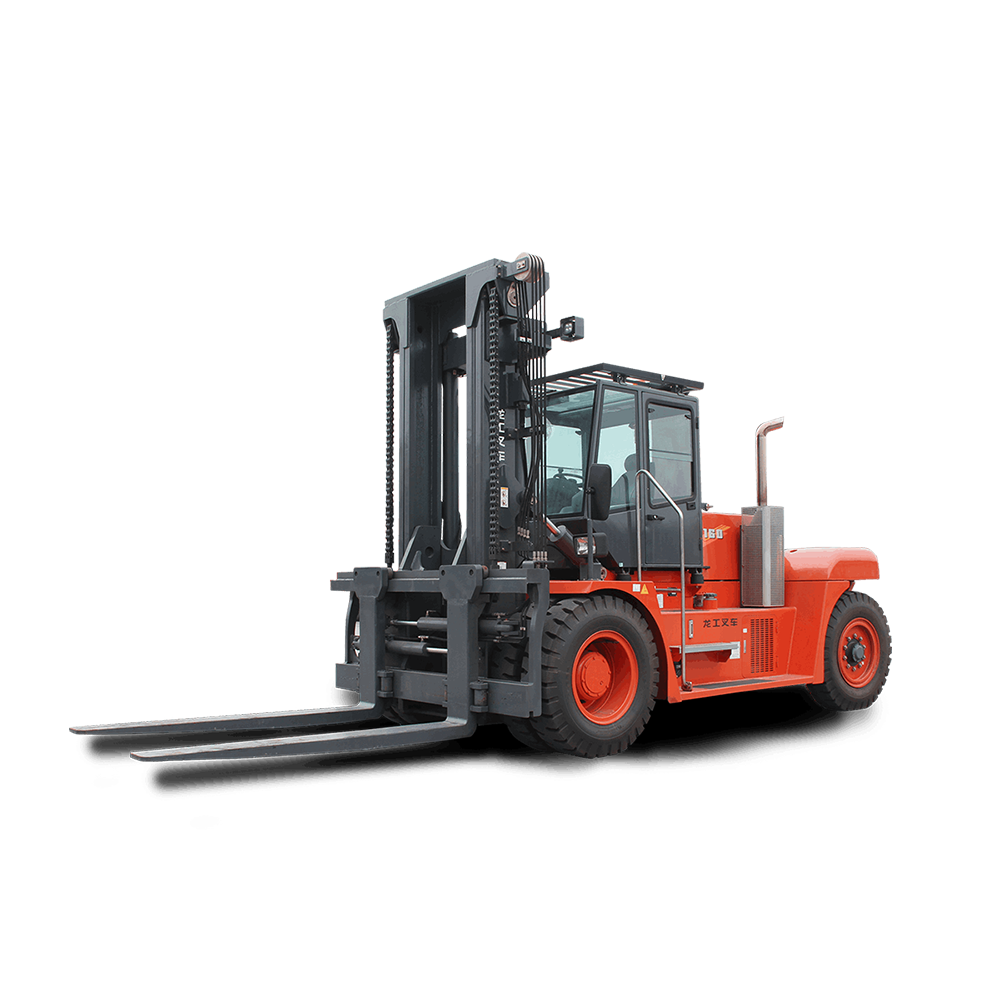

Diesel Forklift
